FUNCTIONING
·

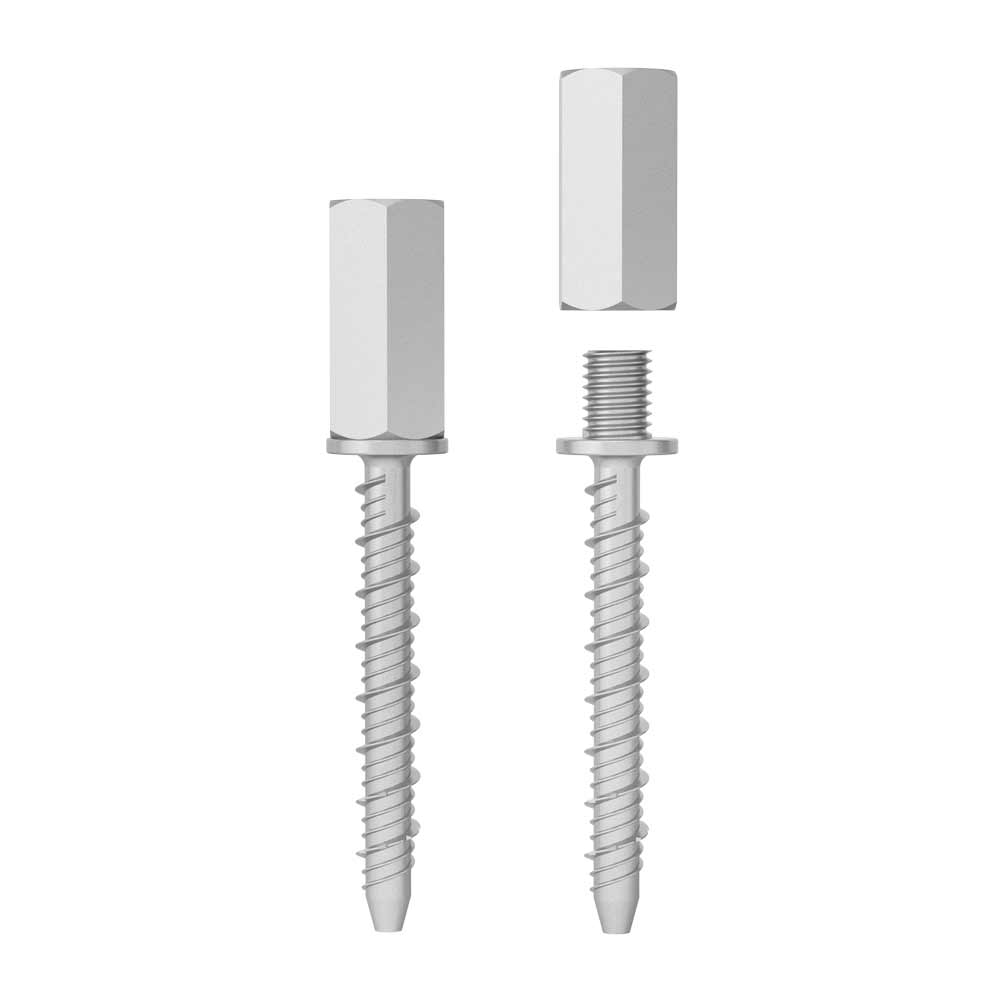

The Vertigo rod hanging concrete screw is suitable for
push-through installation.
·
When the rod hanging screw is screwed into the
drill hole, the thread flanks cut positively into the concrete.
·
Use a torque wrench for easy installation.
·
Do not exceed the maximum installation torque.
·
Easy and quick installation.
ADVANTAGES
·
Simple and time-saving threaded screws for the use
in concrete.
·
Completely removable anchor suitable for temporary
fixings.
·
Virtually expansion-free operation allows
cost-efficient fixing with small axial spaces and edge distances
·
Made of zinc-plated steel, high load capacity.
BUILDING MATERIALS
·
Concrete C20/25 to C50/60, cracked and non-cracked
·
Prestressed hollow core concrete slabs, strength
C30/37
APPLICATIONS
·
Various pipes
·
Sprinkler systems
·
Various HVAC applications
Also known as: Hussies, Iccons, Iccon, Toge
Alternate code: CVM1030, 01BBVER001
