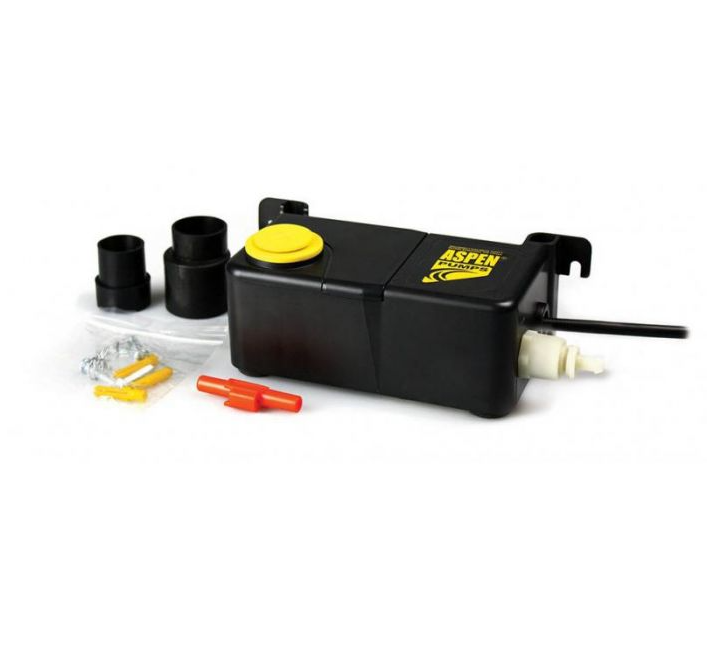

Mini Tank pump (including hard wired 1.5m power cable) • x2 Rubber adaptors (21.5mm & 31mm) • Anti siphon device • Fixing kit • Install manual Download manual at aspenpumps.com View install video at aspenpumps.com SUITABILITY 210mm The new and improved Mini Tank pump can be wall mounted, floor mounted, in-pan or suspended on M8 / M10 rod. Using piston technology this is a compact, powerful and multi functional tank pump.
ASPEN Mini Tank Pump (35 Ltrs/Hr)
4 Ways to Install
Compact & discrete
Can be located in drain pan
Easy Maintenance
Suitability:
Up to 46kW / 157000Btu/h
Ducted Units; Floor standing & chassis units; cassette units
Perfect for installation versatility
SPECIFICATIONS
Max. flow:35 L/h @ 0 head
Max. rec. head:15m
Tank capacity:0.24L
Sound level:35 dB(A) @ 1m
Power supply:230 VAC, 0.1A, 16W, 50/60Hz
Rated:Non continuous
Class:II Appliance
Max. unit output:46kW
Max. water temp:40°C / 104°F
Inlets:x2 22mm, 12mm & 27mm
Outlets:6mm & 10mm
IP Protection:IP65
Safety switch:3.0A Normally closed
Thermal protection: Yes
Fully potted: Yes
Self priming:n/a
Part number:FP1056/2
