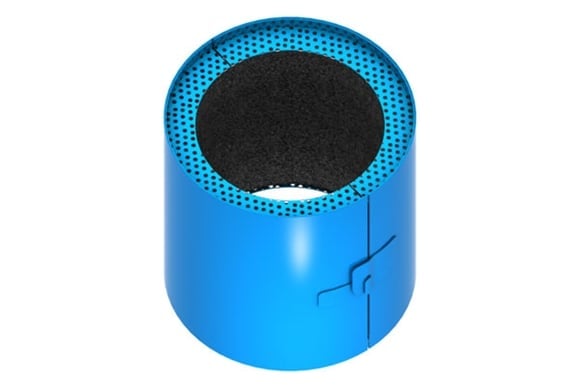

FCW150. Unlike the standard styles of retrofit fire collars and sockets which usually require a collar on both sides of the wall, the 'Through Wall' FCW collars only require one collar, installed directly into the penetration in the wall.

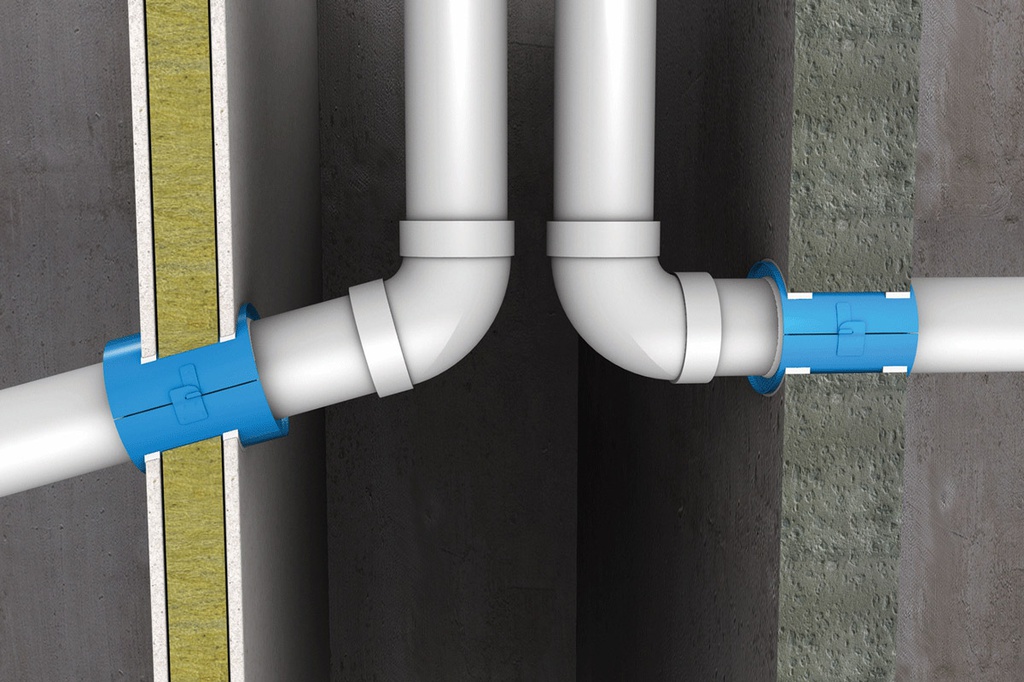

The Through Wall
Collars have been tested and approved so that they can be positioned at the
angle required for falls specified for the plumbing pipes.

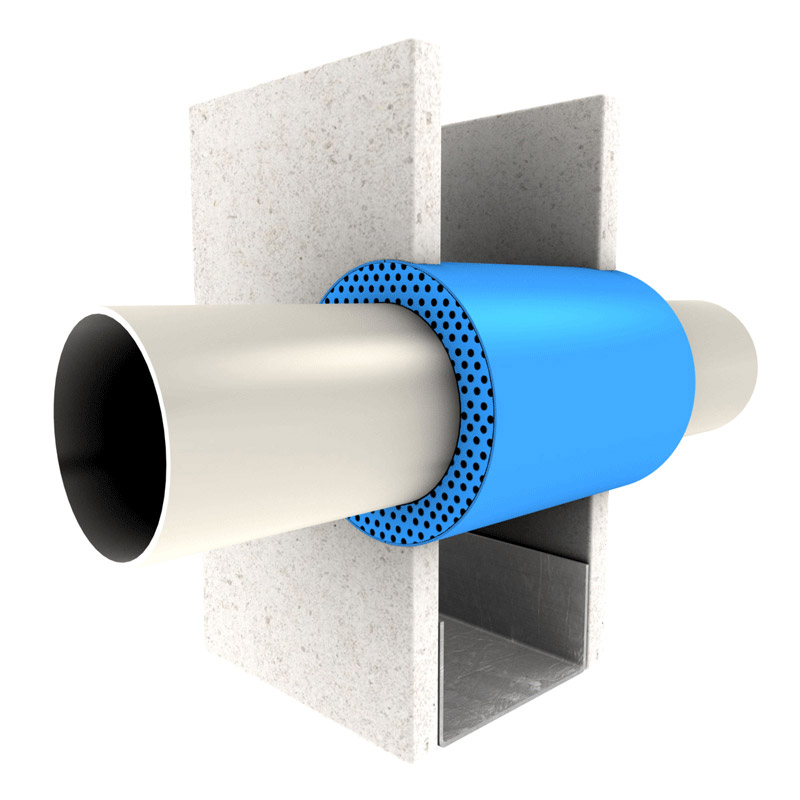

They are designed
for insertion into wall elements made of hebel, plasterboard, concrete or
brickwork, and can be used with a range of pipes for up to 120 minutes fire
rating (in accordance with AS 1530: Part 4, AS 4072: Part 1 and BS 476: Part
20).
IMPORTANT: Always check to ensure the collar under
consideration has relevant certification for:
* the building materials in the
application,
* the orientation of the
penetration,
* the type, size and thickness
of the pipe,
* the installation method.
* the FRL rating
With over 12 years' experience in passive fire
consulting, PowaGroup Fya-Defence can help you select the most cost effective
compliant passive fire solutions across your entire project.
You're welcome to consult with the friendly
Fya-Defence team on your specific applications today.
