The Fya-defence Stack-work Cast In Fire
Collars by PowaGroup reduce the labour costs of passive fire rating stack work
pipe penetrations on concrete floors for multi-level sites. Where-ever services pass through a building
element, Fire Collars must be installed to maintain the FRL of the element
irrespective of their situation.
Simply fix the
correct fire collar base to the formwork on site and your pipe penetration is
located, complete with its passive fire protection.
Avoids the need for
core drilling the penetrations after the floor is poured and then retro fitting
fire collars to the stack work. Once the floor is poured and the formwork is
stripped, simply cut off the top of the Cast In Collar and install your pipework.

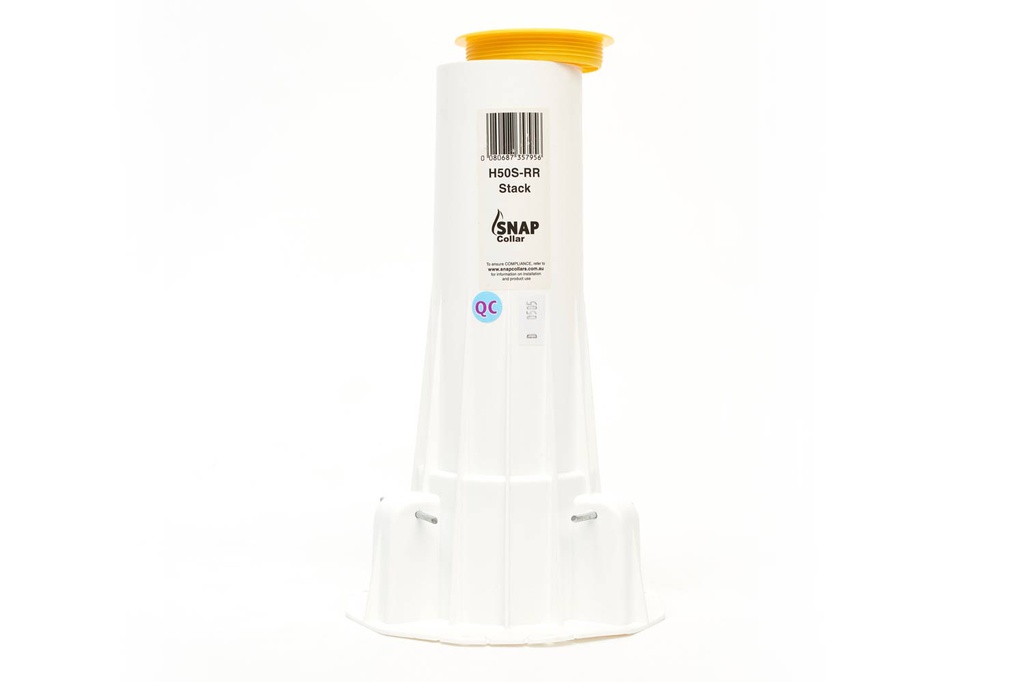

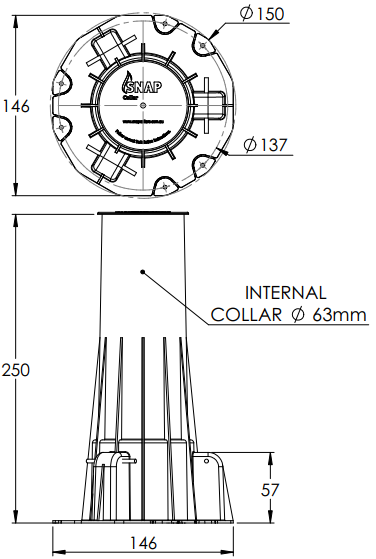

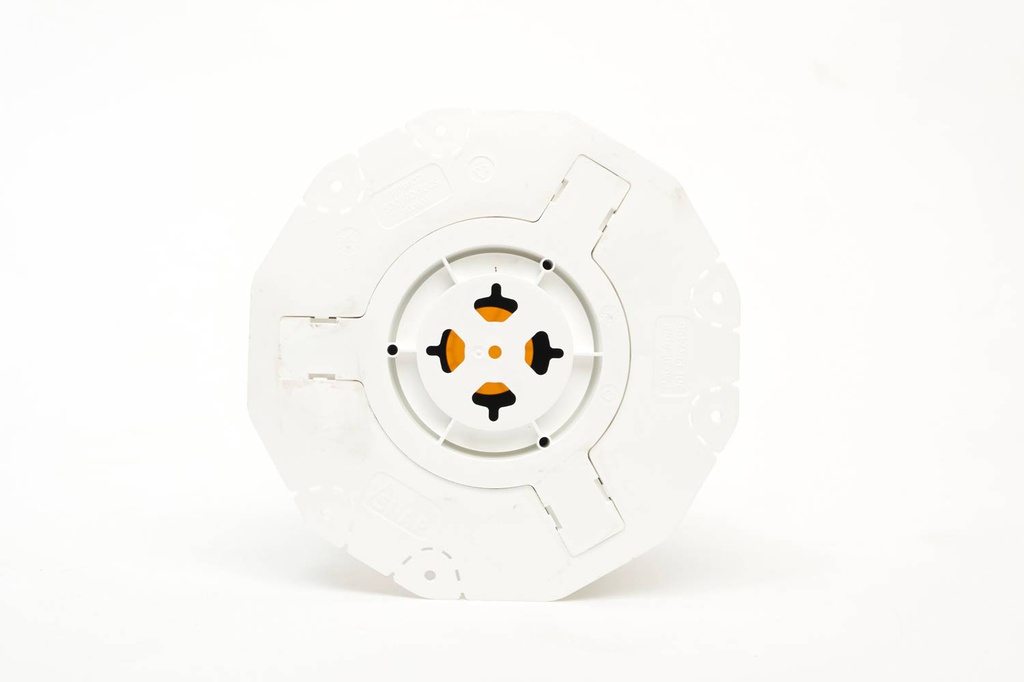

The H50S (-RR) is a high-top, cast-in fire collar for concrete slabs.
Approved for Stack applications only.
For use with a range of pipe types and diameters.
Has an internal rubber ring (-RR) that seals against the pipe.
Box of 24
Alternate Code: 11CASTSTKH50S
