Trafalgar FyreSTRAP 320mm

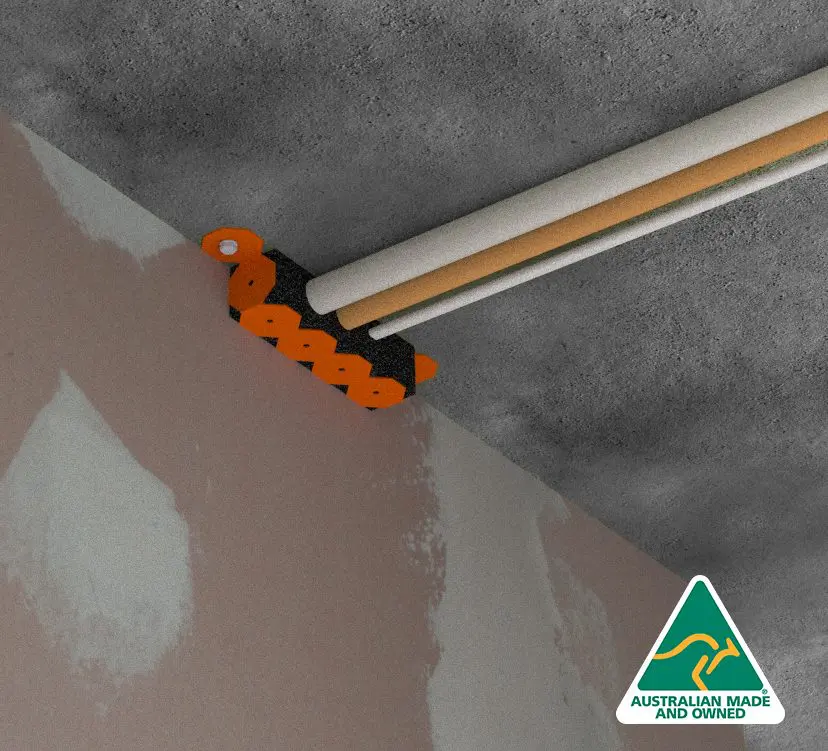

The FyreSTRAP is a retrofit head of wall service penetrations system designed to prevent the spread of fire through small service penetrations that are located through the head tracks of plasterboard, or control joints above concrete and block walls, with industry-leading FRL’s of up to -/120/120 (system-specific).

For Walls:

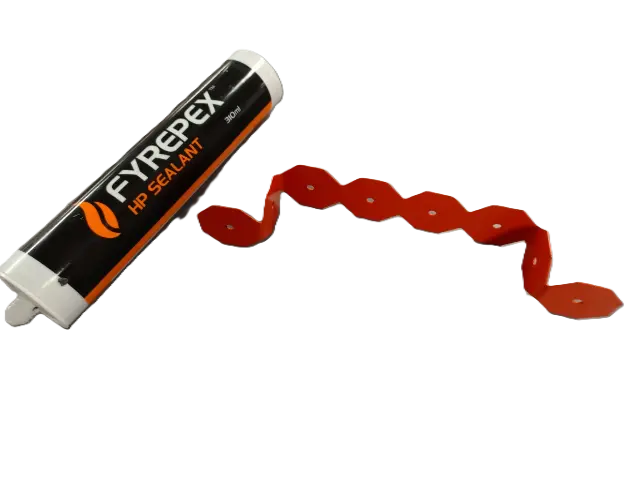

FyreSTRAP is designed to easily treat the head of wall penetrations through tight spaces. The FyreSTRAP can be easily bent to fit around multiple services and then filled with FyrePEX HP Sealant to treat multiple penetrations. The system is simple to remove, adding in the flexibility to add additional services in the future if required.

For Ceilings:

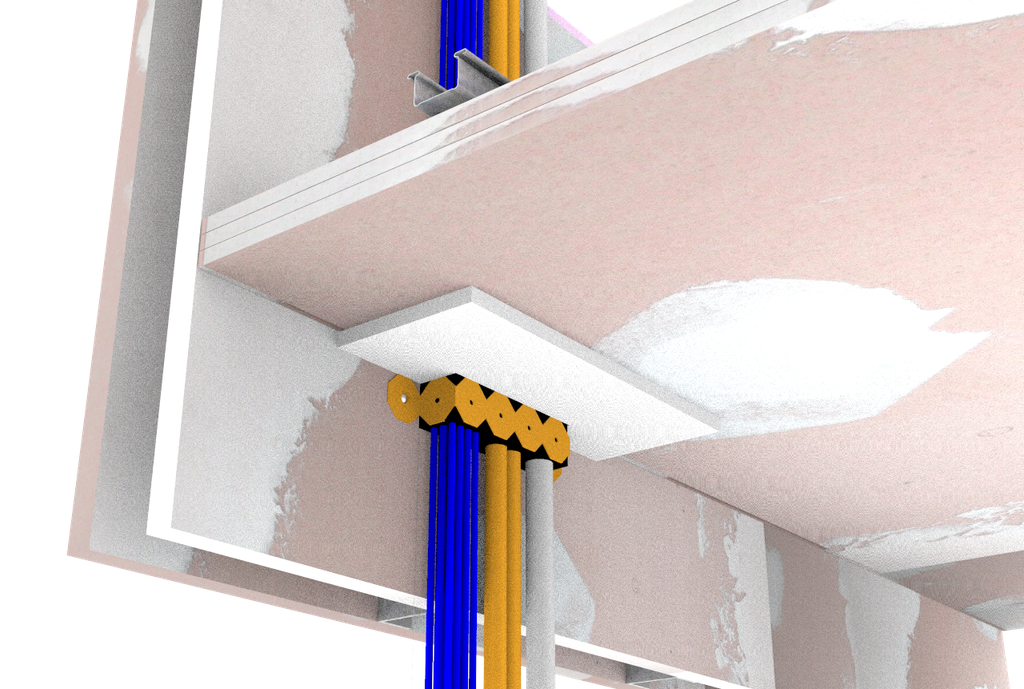

FyreSTRAP systems are also suitable for use where small cable and conduit services which have been run up a wall and penetrate through a fire rated ceiling, close to the wall through the ceiling’s J-track. This application is tested for FRL’s up to -/120/120 with an RISF rating of 60 minutes, to meet all requirements of the NCC.

In the event of a fire, the intumescent-based FyrePEX HP Sealant will expand and form a tight seal around cables and crush plastic conduits to prevent fire from spreading from one side of the wall to the other.

Key Features

• Flat packed for easy shipping, transport, and storage
• Simple and quick to install
• Cost-effective
• Allows mixed services to pass through one opening
• Space-saving and eliminates the need for 200mm separation between services
• Tested to AS1530.4-2014
• Now also tested for floor penetrations, with FyreSTRAP on the underside only

Applications:

Head of Wall penetrations:

• Conduits
• Power cables
• Concrete floors
• Concrete & Masonry walls
• Blockwork walls
• Plasterboard walls
• Speedpanel walls
• Hebel Walls
• Plasterboard ceilings

Side of Wall penetrations:

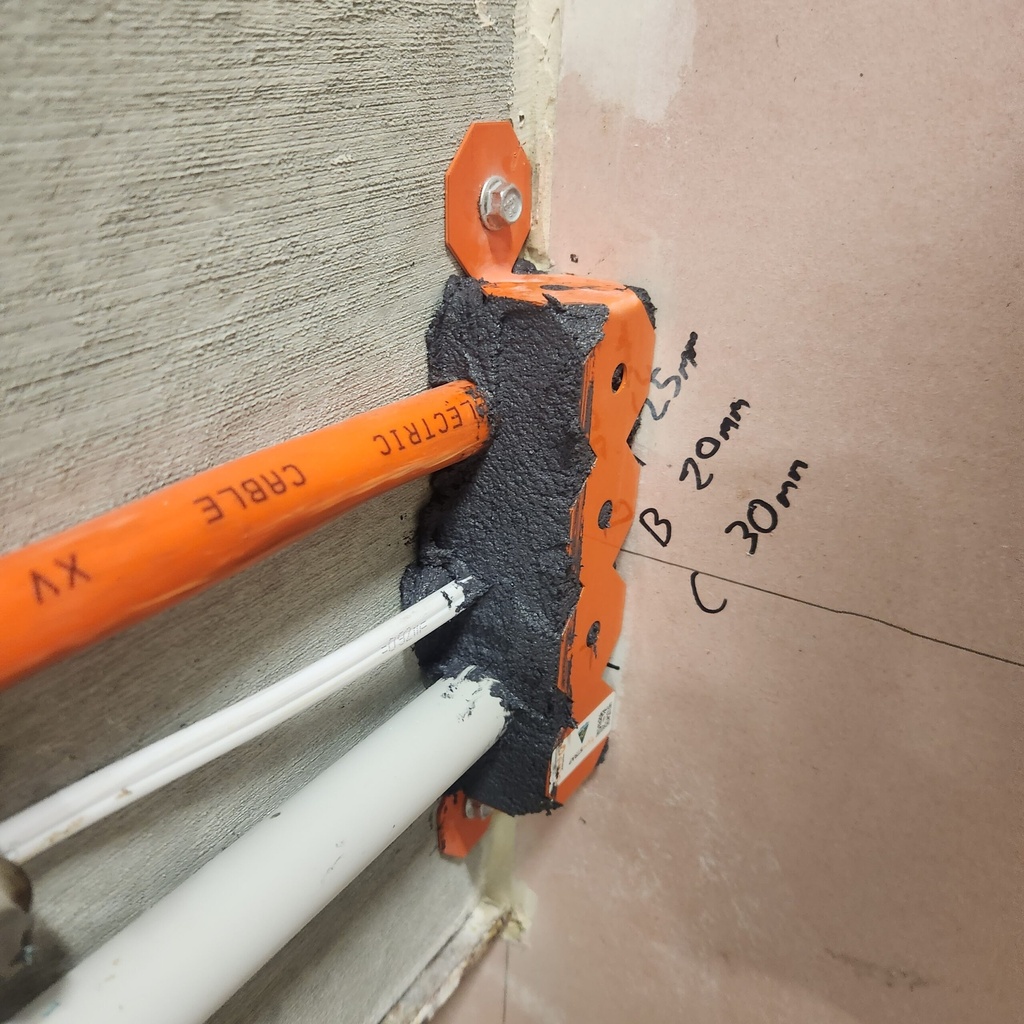

The FyreSTRAP has been tested for penetrations through plasterboard walls while running against an adjacent concrete/masonry wall. The penetration can be located anywhere up the height of the wall and can maintain an FRL of -/120/120.

This detail is only approved for:

• 2hr plasterboard walls – 2x13mm layers
• Concrete & Masonry walls

Test Reports and Documents:

• FyrePEX and FyreSHEATH Assessment Report FAR 4849
